Digital Multimeter Voltmeter Avometer DT-9205A

Description:

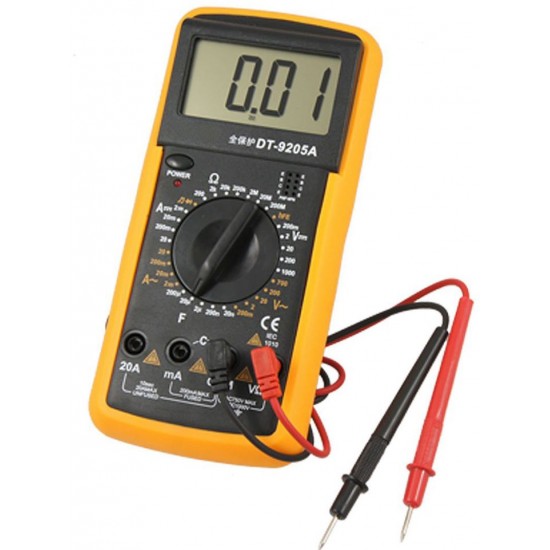

DT9205A Digital Multimeter Voltmeter Ohmmeter AC/DC Ammeter Capacitance Tester


This Digital multimeter is a kind of convenient operation, accurate reading, complete function, small size, easy to carry and use battery as power, handheld and large LCD screen multimeter, 3 1/2 digits display , can be used to measure DC voltage/current, AC voltage/current, resistance, capacitance testing, diode and transistor HFE test and on-off circuit, etc.


Good for engineering design, laboratory, production test, factory service, field operation and industrial maintenance



Features:



Diode to test.

Triode will magnify times.

it will beep when it turn on/off.

Non-contacting voltage test.

input the wrong pen will make the sound/light waning.

Data retention,Automatic shutdown,Manual range.

Low voltage will be prompted.

Voltmeter Input Impedance Measuring:10Ω



Specification:



31/2 maximum display: 1999

DC voltage: 200mV, 2V, 200V, 1000V

AC voltage: 2V, 200mV, 200V, 750V

DC current: 20uA, 200uA, 2mA, 20mA, 200mA, 2A, 20A

AC current: 20uA, 200uA, 2mA, 20mA, 200mA, 2A, 20A

Resistance: 200Ω/2K/20K/200K/2M/20M ±(1.0%+2)

Capacitance: 2nF/20nF/200nF/2uF/20uF/200uF ±(3.0%+2)


Power: 9V battery(included), NEDA 1604 or 6F22

Length: approx 18.5cm

Width: approx 9cm

Thickness: approx 3cm

Weight: appro x359g

Material of the item outside: flame retardant engineering plastics



Package includes:



1 x DT9205A Digital Multimeter

2 x Test probe

1 x Instruction manual
